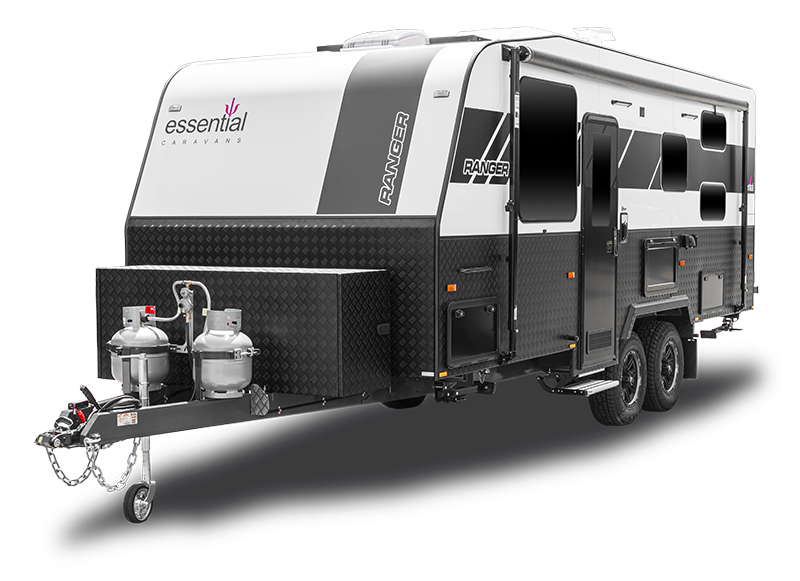

ESSENTIAL CARAVANS Ranger

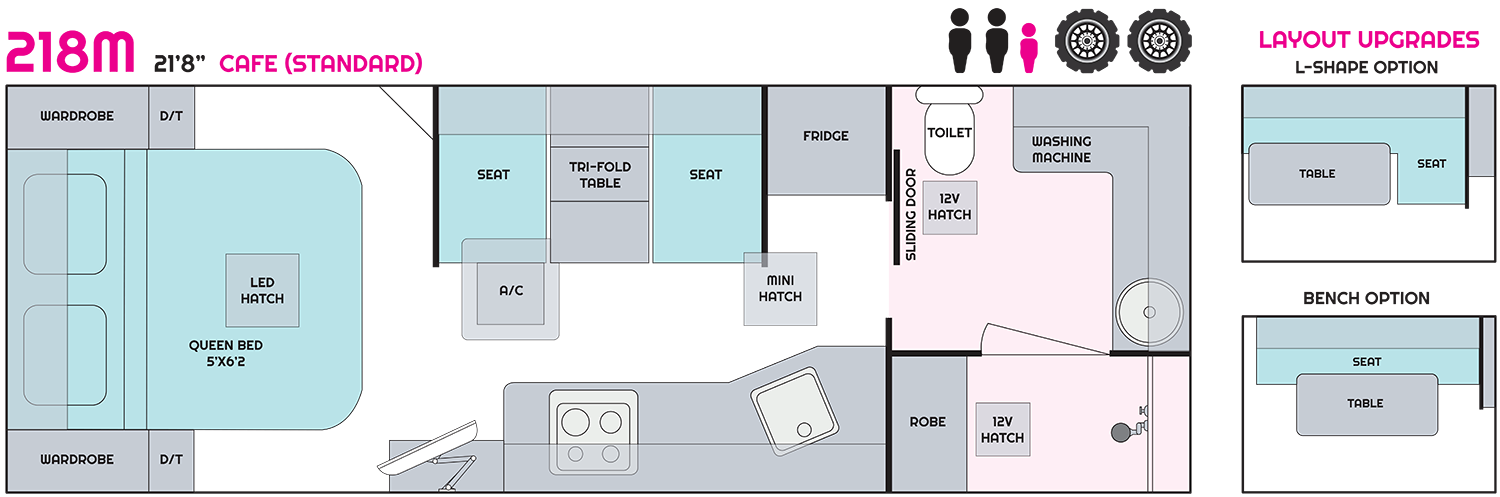

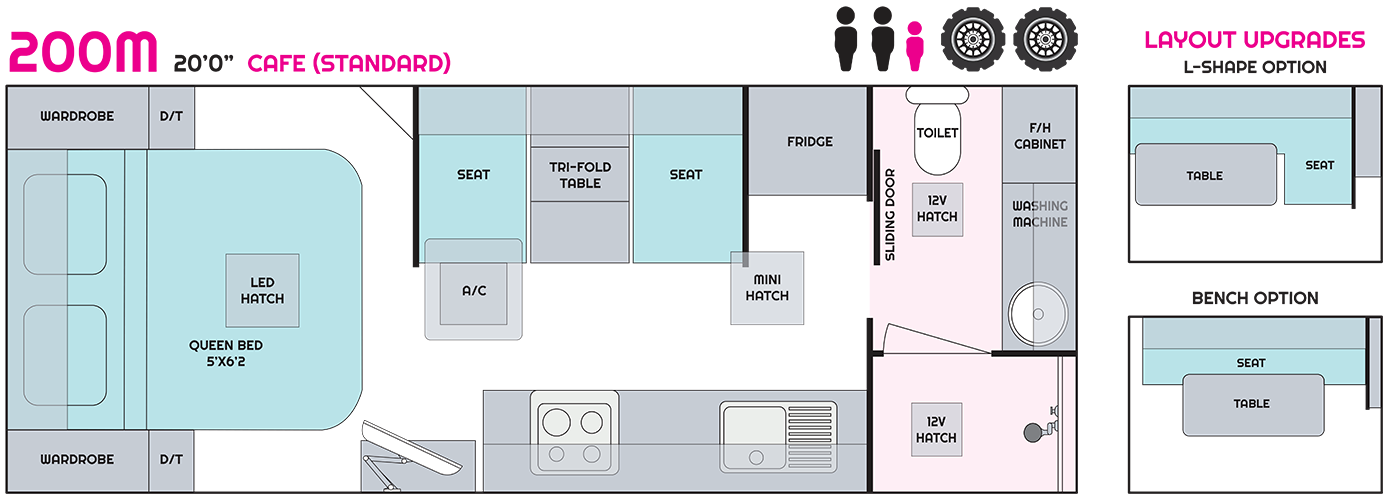

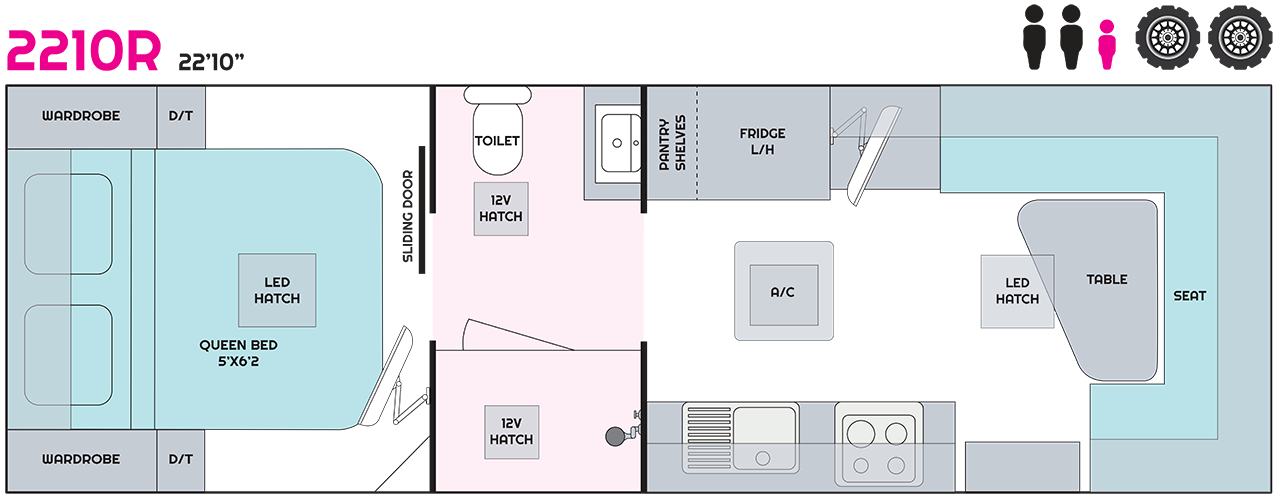

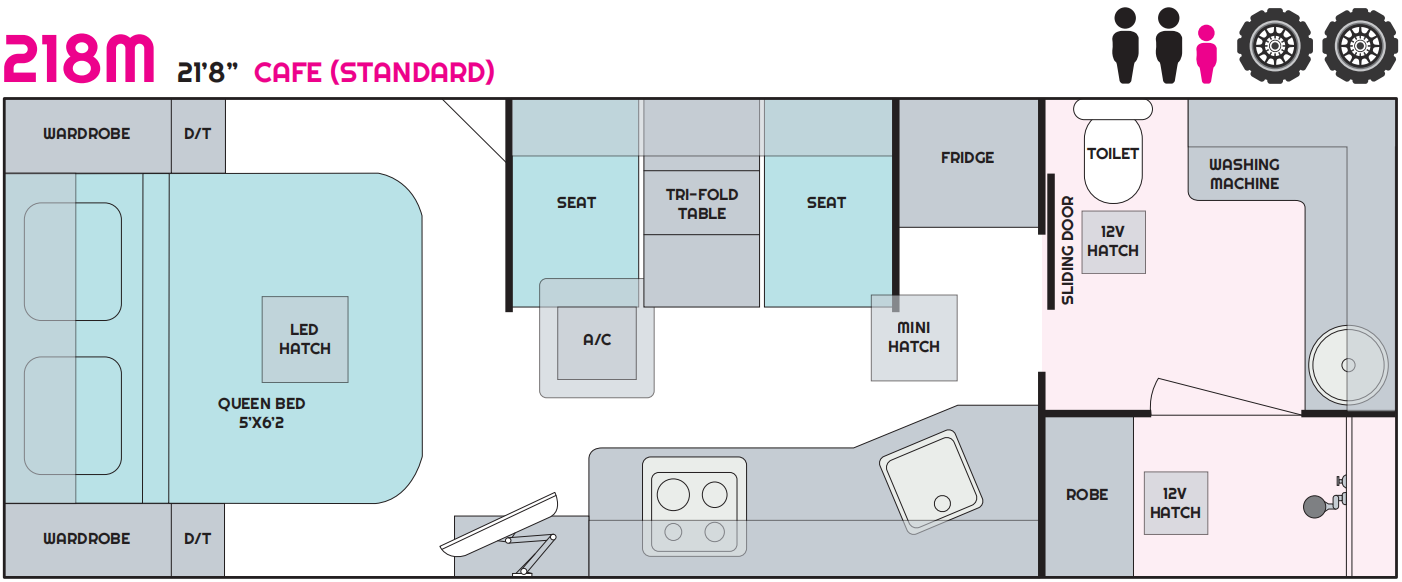

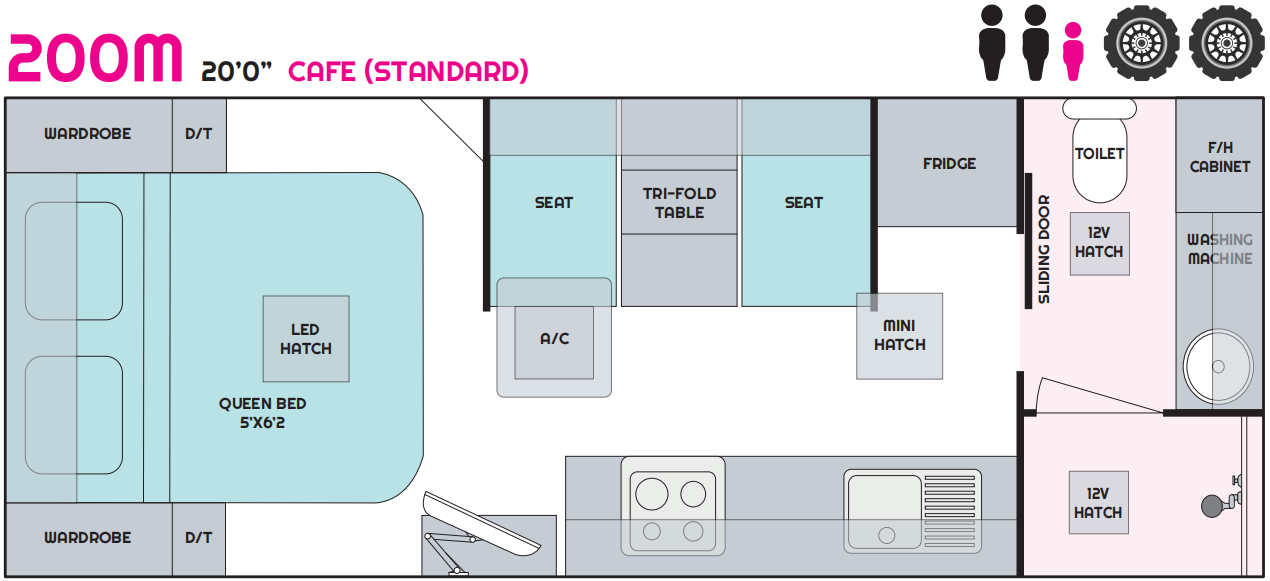

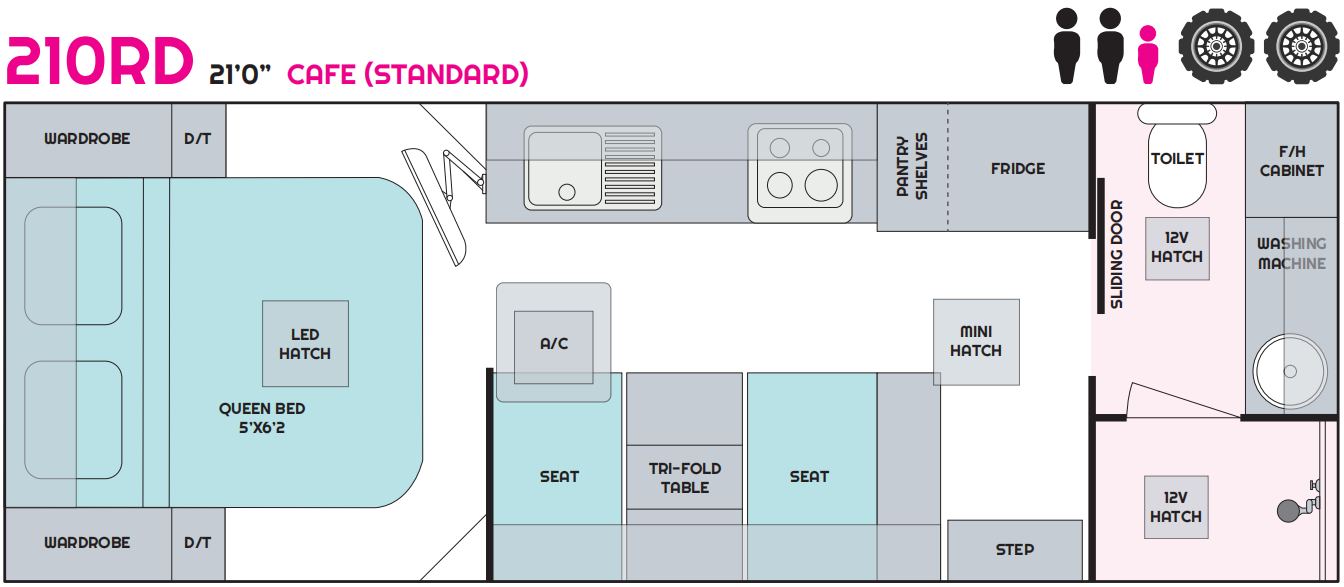

Select your floorplan

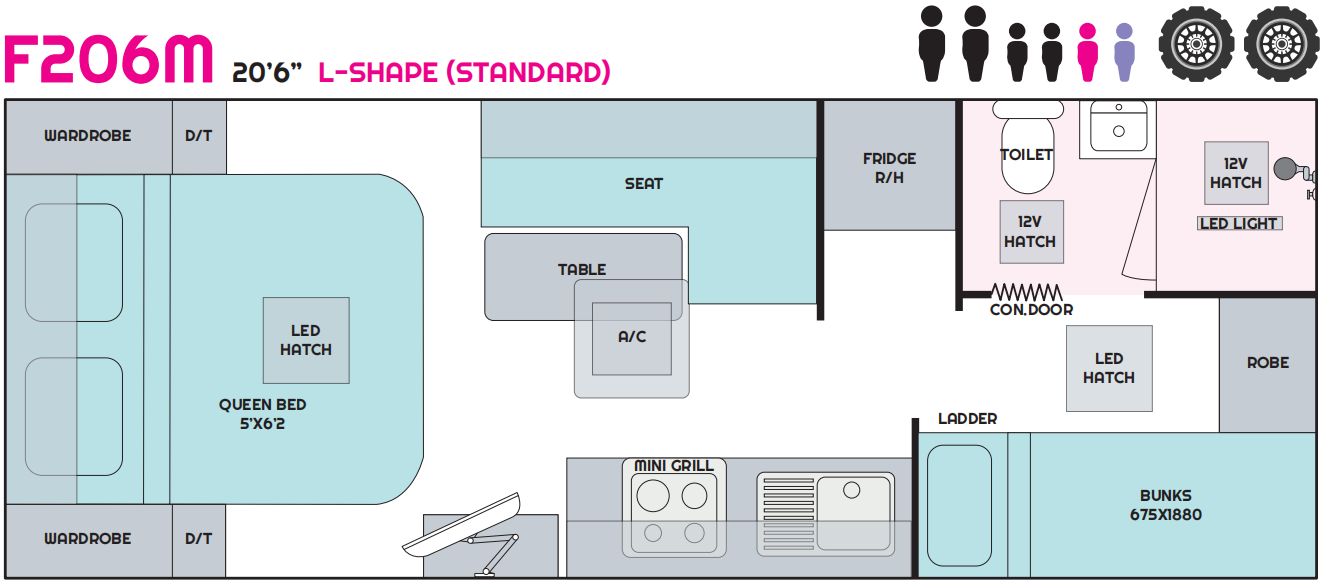

Ranger F206MD

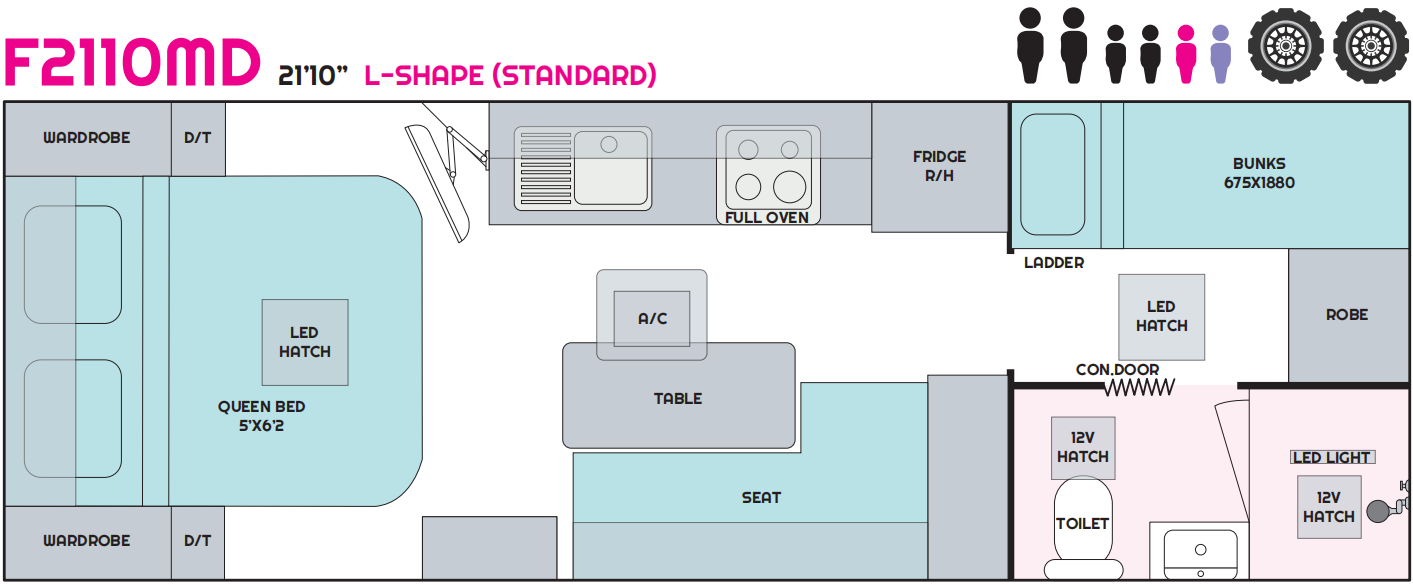

Ranger F2110MDD

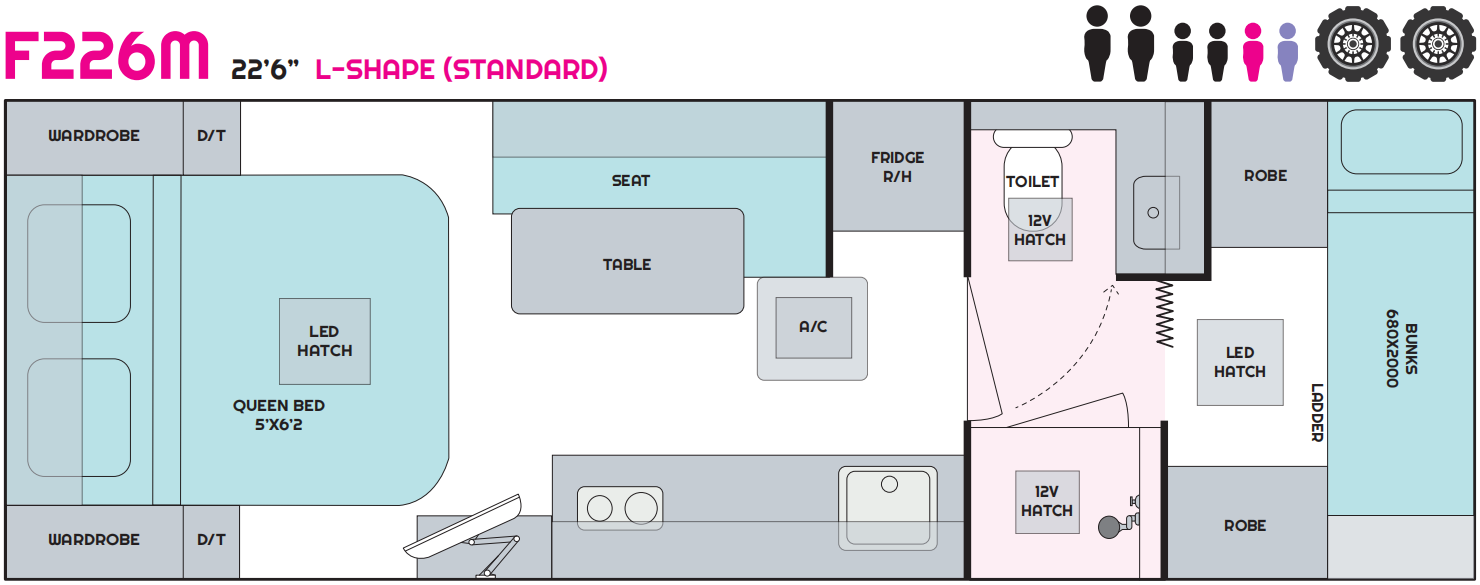

Ranger F226MD
ESSENTIAL CARAVANS Ranger Specifications
- 6” Heavy Duty A-frame
- 10” Electric Brakes to Tandem Axle
- Wind Up Jack
- Drop Down Stabilizer Stands
- DO35 Coupling
- Heavy Duty 2 Arm Bumper
- Aluminium Pullout Step
- 4” Heavy Duty Chassis & 2” Raiser up to & including 21’6 size van
- Spare Wheel Included
- Jumbo 500 Toolbox Smooth Raptor Coated incl. 2 × Slides
- 245/75R16 All Terrain Tyres & 16” Alloy Rims to Tandem Axle
- Galvanised Wheel Arches
- A-Frame Tap & Gas Regulator
- Break Away System
- 8” Jockey Wheel
- Batteries Mounted on Chassis
- 12” Electric Brakes to Single Axle
- Titan Semi Off Road Suspension to Tandem Axle
- Checker Plate Water Tank Stone Guards
- 6” Heavy Duty Chassis above 21’6 size van – no Raiser
- A-Frame Extended 450mm
- 265/75R16 All Terrain Tyres & 16” Alloy Rims to Single Axle
- Titan X Off Road Suspension to Single Axle (Van 186R has upgraded 2750kg GTM)
- Door Light & Entry Handle
- 24” Flatscreen TV on Wall Mounted Bracket
- Roof Digital TV Antenna
- Circuit Breaker & Earth Leakage
- Reading Lights to Bedroom & Lounge with USB & USB-C
- Power Points (1 × Kitchen, 1 × Ensuite)
- 30A AC Battery Management System & 30A MPPT Solar
- 30A DC–DC Charger
- External Solar Input Blue Anderson Plug
- 2-way Switch from Bedroom to Ensuite Light
- Double 240V Point & USB Point to Each Wardrobe and Lounge
- Microwave in OHC Above Kitchen
- LED External Lights
- 240V 15AMP Inlet & 240V 10AMP Outlet
- Reversing Camera & Car Monitor Kit
- 12 Pin Trailer Plug
- LED Lighting – Roof, Kitchen, Ensuite
- 2 × 220W Solar Panels Roof Mounted
- 4” Bluetooth LCD Colour Monitor Touch Screen
- 1 × 300Ah Lithium Battery Chassis Mounted
- Bulkheads with Strip Lights
- 12V / USB Socket & TV Point at Outside Picnic Table
- Stovetop with 3 × Gas / 1 × Electric Element & Gas Mini Grill
- 2 × Bug Annexe Lights & Bug Light over Tunnel Boot
- Drawers on Metal Runners
- Fire Extinguisher
- 12V Rangehood
- 2 Single Towel Rails and 1 Toilet Roll Holder
- Wardrobes Recessed Cutout With Shelf
- Doors To Ends of Seats
- Pot Drawer beneath Stove & Grill
- Grab Handle on Entry Wall at Main Door (layout dependent)
- Charger Under Bed
- Nuova Telescopic Table Leg to L-Shape & Club Lounge (infill cushion not included)
- Hidden Latches to OHC
- Cutlery Tray
- Mirror in Ensuite
- Innerspring Queen Mattress
- Smoke Detector
- Frosted Glass Shower Door
- Full Laminate Benchtop
- One-piece Poly Honeycomb Flooring System
- Recessed Cooktop with Lid Over Stove
- Door Hinges Hairline STD
- Microwave in OHC Above Kitchen
- Push Button Locking Handles to Lower Doors and Drawers
- Washing Machine (not standard in Ranger Family Vans)
- A-Frame Mains Pressure Tap
- Mains Pressure Water Inlet
- Porcelain Bowl Toilet
- Dual 9Kg Gas Bottles with Changeover Regulator
- 2 × 95L Water Tanks
- 3-in-1 Kitchen Tap with Water Filter
- 2 × Lockable Water Tank Inlets
- 95L Grey Water Tank

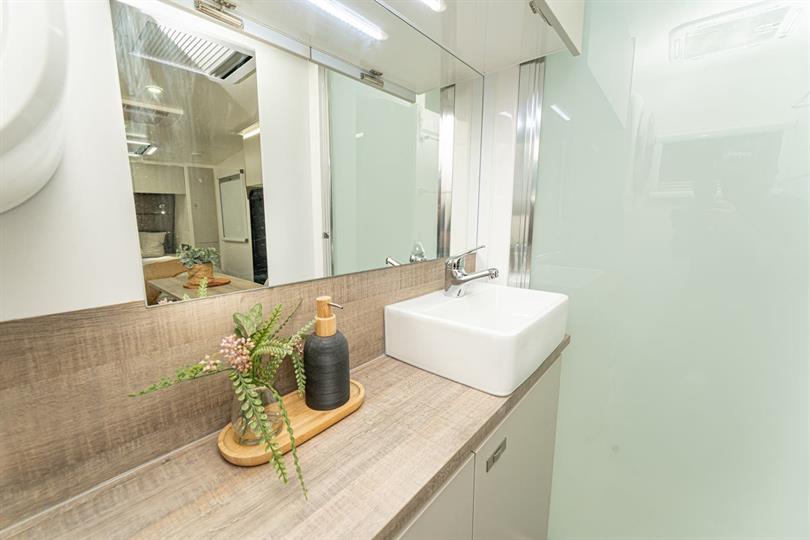

- China Vanity to Ensuite
- 12V Water Pump
- External Gas Bayonet At Front Boot Door Side
- Flick Mixer Taps
- Deep Bowl Stainless Steel Sink with Drainer (Layout 218M – no Drainer)
- Gas / Electric Hot Water System
- Twin Water Level Gauges
- 2-Door 171L Compressor Fridge
- Awning
- Smooth Aluminium Composite Sides
- LED Roof Skylight with Blind & Flyscreen (1 or 2 depending on layout)
- One-piece Poly Honeycomb Flooring System
- Poly Frame Front Wall
- Checker Plate Step Well
- One-piece Fibreglass XPS Sandwich Panel Roof, Fully Insulated
- Galvanised Front Tunnel Boot with Large Access Doors
- Double Glazed Push Out Windows with Integrated Blinds
- 3-Year Bumper to Hitch Warranty
- Raven Coated Checker Plate Wheel Spat
- Radius Locking Security Main Door
- Black External Trim
- 12V LED Fan Hatch to Shower & Toilet
- Insulated Side Walls with Meranti Framing
- External Fold Down Picnic Table with Integrated 12v Lighting
- Raven Coated Checker Plate Front & Rear
- Roof Air Conditioning (SANJO)
- Galvanised Rear Generator Compartment (layout dependent)
- One Key to Access Hatches and Main Door
- 800mm Raven Coated Checker Plate Sides
